Smart, zone controlled radiators — Taming One-Pipe Steam Heat in NYC Apartments
Hello!
If you’re actually reading this — props to you for taking interest in something it seems like almost everyone just takes at face value as being one of the many unfixable, immutable difficulties of NYC pre-war apartment living (hell, most of my friends included). If you’ve got an hour and a couple hundred bucks, I promise you it’s really not. I’ve got 4 radiators in my 1920 building’s unit, and I keep 2 or 3 of them off at almost all times so things stay a perfect 70 during the day in the house and 67 in the bedroom at night without the windows flung open.
I’m going to start this out by issuing a caveat: as soon as the old school steam pros and HeatingHelp forum types read this, there will inevitably be groaning about how “you’re doing it wrong” and “you should never be shutting off radiators” — they’ll tell you to focus your efforts on properly balancing your steam system. In a vacuum (there’s a pun in here somewhere), that’s completely true and good advice — what the pervasive conventional wisdom ignores, however, is the cold hard fact that the people who landed on this article are not homeowners with their own steam boiler and radiators they control.
I’m speaking to the apartment dwellers in New York City, renting in a pre-war building alongside hundreds of other people with a steam system that’s been barely maintained over the years and an off-site superintendent who could not possibly be less interested in spending even one second of their day changing anything about the system. Sprinkle in a touch of centuries-old laws from the Spanish flu meant to encourage open windows in tenement buildings, you have a genuinely unique situation on your hands.
The result? Your apartment is 90F in the dead of winter and your windows are wide open, as your skin cracks and bleeds from the low humidity — and if you miscalculate the window opening amount just a little, you wake up either freezing or sweating bullets.
In such a case, as has been my own experience in multiple buildings, your only recourse is to be able to control the heat from within your unit — which is effectively impossible outside using the service valves to shut off the radiator entirely.

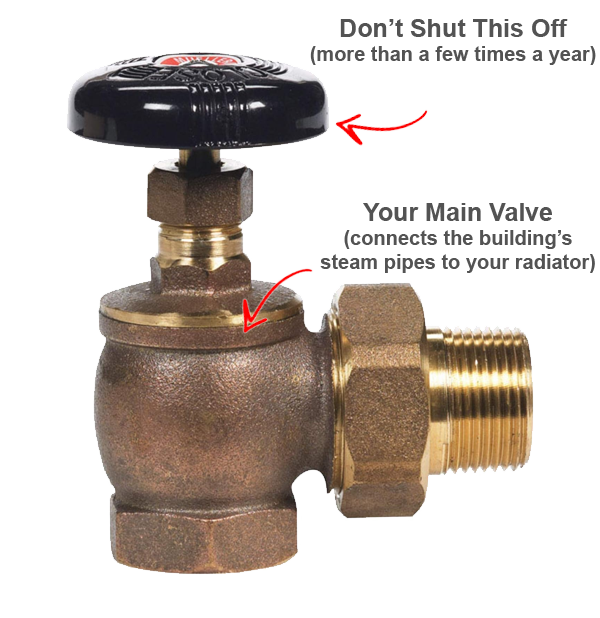

Don’t do it. Shutting off radiators at the valve is not ideal for any number of reasons — those screw top valves are not meant to be used regularly, take forever to open and close, and absolutely will degrade in a relatively short period of time if you are frequently twisting the wheel. It might be tempting to crank the valve halfway open… then you’ll get half as much heat, right? Afraid not, friend — you should never partially open the valve. It must be completely open or completely closed, being in the middle won’t change the temperature but it will cause problems.
So, what are our options? First, strongly consider a radiator cover. It will make the heat a little more gentle and you can always take the cover off if you need more.

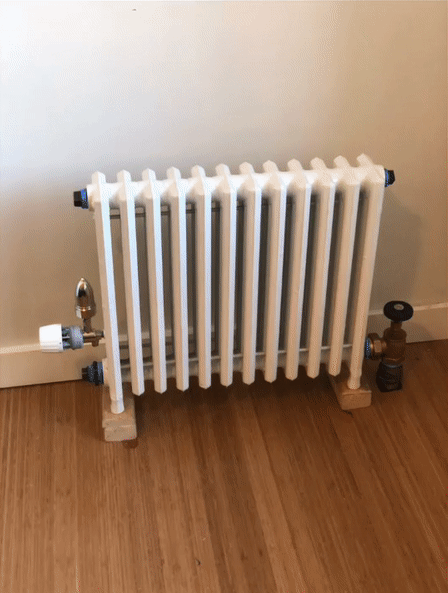

TRVs, or Thermostatic Radiator Valves, are one of the most practical and renter-friendly solutions for gaining some semblance of control over the heat in your apartment without resorting to the nuclear option of shutting off the radiator entirely. These devices are designed to regulate the amount of steam entering the radiator by automatically adjusting the flow based on the ambient temperature in the room. Essentially, they act as a thermostat for individual radiators, allowing you to maintain a more consistent and comfortable temperature without overheating or freezing. Most options have the thermostatic controller attached to the vent itself, so you’re getting localized readings, but Honeywell/Residio does offer a remote TRV with a capillary wire that allows you to place the control and temperature sensor away from the radiator for more accurate readings. This is essentially a must if you keep your radiator under a cover (which I highly recommend doing for a variety of reasons)
The beauty of TRVs lies in their simplicity and non-invasive installation. Most models are designed to replace the existing air vent on your radiator, which is the small valve that hisses and releases air as steam fills the radiator. By swapping this out for a TRV, you gain the ability to set a target temperature for the room. When the room reaches that temperature, the TRV restricts the flow of steam into the radiator, effectively throttling the heat output. When the room cools down, the TRV opens back up to allow more steam in. This passive, self-regulating mechanism makes TRVs an excellent choice for renters who can’t make major modifications to their apartment’s heating system.
Few caveats — TRVs are not a magic bullet. They can only control the heat output of the radiator they’re installed on, and they rely on the overall steam system being functional and reasonably balanced. If your building’s boiler is wildly inconsistent or your radiator is already receiving too much steam due to poor system maintenance, a TRV can only do so much. TRVs work best in rooms with good airflow, as they rely on accurate temperature readings from the surrounding air. If your radiator is tucked behind heavy furniture or curtains, the TRV may not function optimally. Still, they are an excellent option and easy to DIY — we’ll cover that below. Expect to spend between $120 and $200 per radiator on a full TRV setup.
Your best options on that front are:
- Honeywell / Resideo V2042HSL10
- Danfoss RA2000
- Macon OPSK — this is what I have on my bedroom radiator — very high quality build, although I replaced the straight vent as I wasn’t happy with the included one.
- Niva One Pipe Steam TRV (Castrads)

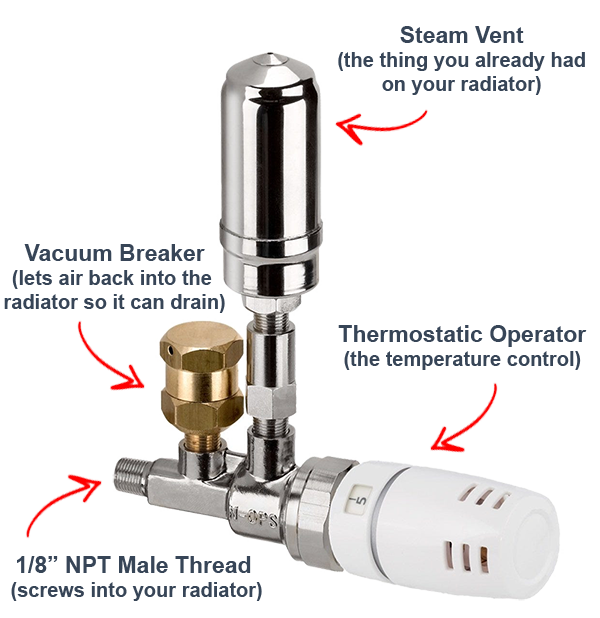

One quick caveat — make sure you’re getting a full kit. The Macon linked there is everything, but often they sell these as platforms, so you can choose which type of temperature controller and vent that you want — but you need the TRV body itself, a vacuum breaker, the vent and the control (either remote or on the valve body)

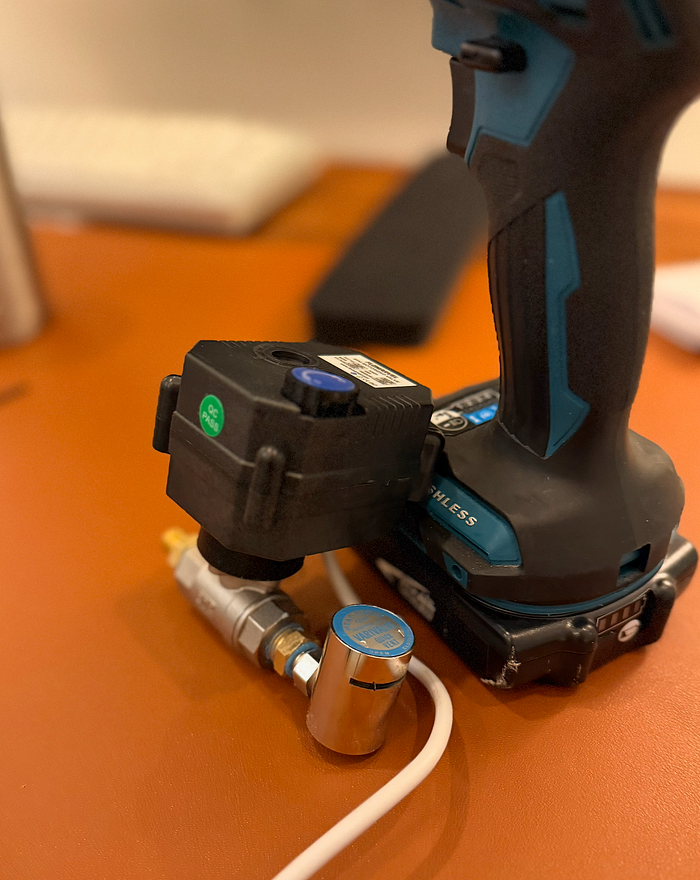

For those looking to take things a step further, or for situations where TRVs alone aren’t cutting it, low-voltage motorized ball valves offer a more advanced — and admittedly more complex — solution. These devices are installed on the radiator’s supply pipe and allow for precise, remote control of steam flow. Unlike TRVs, which operate passively, motorized ball valves can be integrated into a smart home system, giving you the ability to control your radiator via a smartphone app or even automate heating schedules based on time of day or occupancy.
What I ultimately landed on is:
- Electric Motorized Ball Valve - Stainless Steel Electrical Ball Valve with Full Port, 9–24V AC/DC and 2 Wire Auto Return Setup from Flomarvel
- Small 12v power supply ($4 on amazon, or repurpose a usb-c charger)
- ¼” NPT to ⅛” NPT reducers and Reducing Hex Nipple, 1/4" x 1/8" Male NPT Connectors to convert the quarter inch ports to one eighth, the standard size for one pipe steam radiator valves.
- VARI-Valve vent
- Matter (Homekit compatible) smart plug

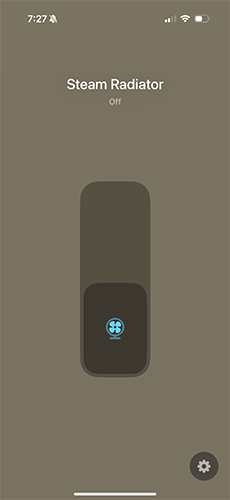

With this, I’ve basically recreated a TRV conceptually (steam can’t enter, radiator doesn’t get hot) but instead of relying on the built in passive thermostat, I can now turn my radiators on and off via Homekit on my iPhone with a single click.

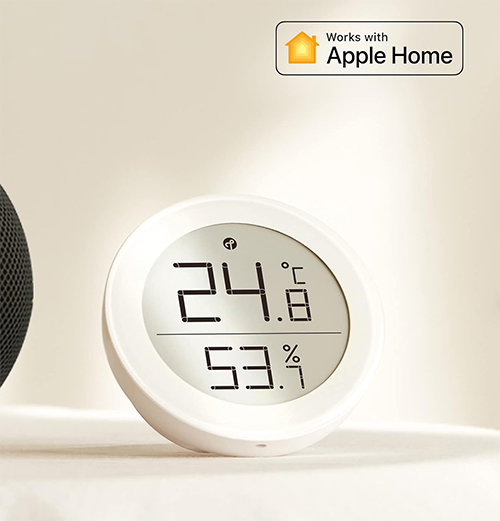

Then, using HomeKit compatible temperature sensors (I use Qingping & Govee models from Amazon), you can automate on and off depending on room temperature… the dream. You’ll need to source your own vacuum breaker or repurpose a TRV body (Niva will sell you their vacuum breaker individually for $15 on castrads.com) and you’re off to the races. I power it off a tiny GaN USB-C adapter and a USB-C to 2 wire barrel power adapter, making it tiny and easy to control with any smart home system.

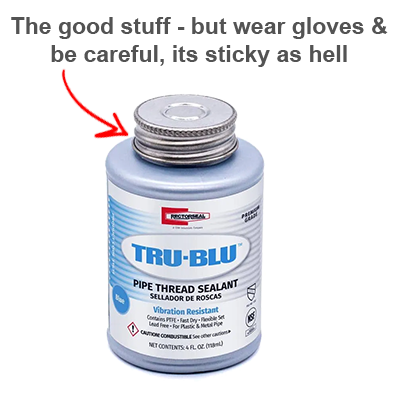

Installation — while some people use teflon tape on the threads, I do not. I swear by RectorSeal Tru-Blu pipe thread sealant and find that it never leaks steam or water when teflon tape often does on the first pass. This might sound complicated, but trust me, it’s super easy — anyone can do it.
Thread Preparation:
Before installing the steam vent or TRV, inspect the threads on the radiator tapping. Clean off any old debris, rust, or remnants of Teflon tape or pipe dope. Just make sure you scrape any gunk out of the hole. Apply a small amount of pipe thread sealant to the male threads of the vent or TRV to ensure a proper seal. Be cautious not to put too much, as excess material can block the vent. Just brush on a nice light coat all around.
Hand-Tight Installation:
Screw the vent or TRV onto the radiator tapping by hand. Tighten it firmly but avoid using tools like wrenches or pliers, as overtightening can damage the vent, distort the threads, or crack the radiator tapping. Hand-tight is sufficient for creating a steam-tight seal when the threads are properly prepared.
Video:
This guy is using tape instead of sealant, but does a good job of showing the process. Give it a watch if you’re not feeling confident on text only, ya boy doesn’t make videos but this one does just fine.
Proper Orientation:
Ensure the steam vent is installed in the correct upright position. Most steam vents have a specific orientation for proper operation, as they rely on gravity and internal mechanisms to function. For example, the vent’s air outlet should face upward. If the vent is tilted or installed sideways, it may fail to close properly, leading to steam leaks or improper heating.
Radiator Pitching:
If your radiator was working well before you changed the vent, it’s likely pitched correctly already and you can skip this step entirely!
Verify that the radiator is pitched slightly toward the supply valve (the end where the steam enters). Don’t know what pitch is? Think of the bubble on a level — pitch is how far from center something is on a horizontal angle. This slight slope (approximately 1/4 inch per foot) allows condensate (water formed when steam cools) to flow back toward the boiler. If the radiator is not pitched correctly, water can pool inside, causing gurgling noises, uneven heating, or water spitting from the vent.
Confused? It sounds complicated, but it really isn’t. Basically, stuff some little wood shims (an old paint stick works great) under the leg of the radiator on the side opposite the pipe that brings the steam in. You just want it tilted enough to let condensate drain back.
Turn the main valve back on and let ‘er rip! Congrats, you’re now controlling your steam.
If you made it this far, congrats! You now know more then perhaps you ever wanted to about the wild world of steam heat. The purists may scoff at the idea of controlling individual radiators rather than addressing the root cause of an unbalanced steam system, the reality for most NYC apartment dwellers is that the latter simply isn’t an option. TRVs and motorized ball valves represent two viable paths to reclaiming some control over your living environment, each with its own set of trade-offs. For those willing to experiment, these solutions can make a world of difference in turning your apartment from a sauna into a space that’s actually livable during the winter months.
